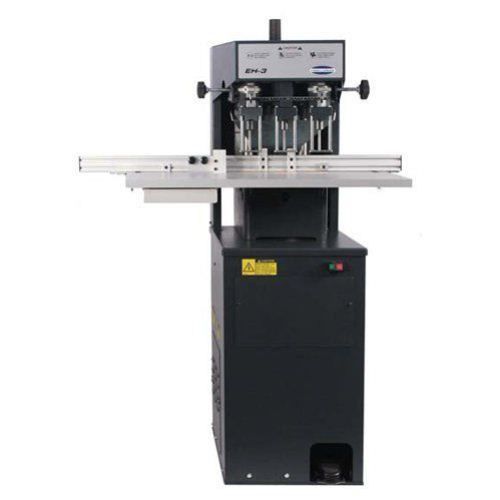

EH-3 MULTIPLE-SPINDLE PAPER DRILL w/ STANDARD BACKGAUGE

Name: EH-3 MULTIPLE-SPINDLE PAPER DRILL w/ STANDARD BACKGAUGE
Availability: InStock

Add to Wishlist

Terms and Conditions

Documents

EH-3_Product_Overview.pdf

Internal Reference :

Product Description
Specifications

Powerful Hydraulic Operation
2-1/2" Drilling Capacity
Fast and Easy Head Adjustments
Flexible Backgauge Adjustments
Automatic Drill Return
Auto-Trip Side Guide (optional)
Made in USA!

Number of Drill Heads	3
Drill Sizes Available (2" capacity)	1/8" to 1/2" / 3 to 13 mm
Drill Sizes Available (2-1/2" capacity)	1/4" to 1/2" / 6 to 13 mm
Range Between Drills	2-3/4" to 4-1/2" / 7 - 11 cm
Range Between Outside Drills	5-1/2" to 9" / 14 - 23 cm
Maximum Drilling Capacity	2-1/2" / 63 mm
Strokes per Minute (adjustable)	Up to 18
Back gauge Adjustment	0 to 4-1/2" / 0 to 11 cm
Vertical Adjustment of Individual Heads	1/4" / 6 mm

DIMENSIONS

Table Size	19-1/2" x 31-1/2" / 50 x 80 cm
Table Height	37" / 94 cm
Overall Height	59-1/4" / 151 cm
Floor Space Needed	36" x 41-1/2" / 91 x 105 cm
Net Weight (approximate)	520 lbs / 236 kg
Shipping Weight (approximate)	570 lbs / 259 kg

ELECTRICAL

1 Phase, 60 Hz, AC. Pump: 1/2 HP. Spindle Motor: 1 HP.
208 Volts, 18 Amps (service size 30 Amps) or
230 Volts, 17 Amps (service size 30 Amps)
UL Listed
