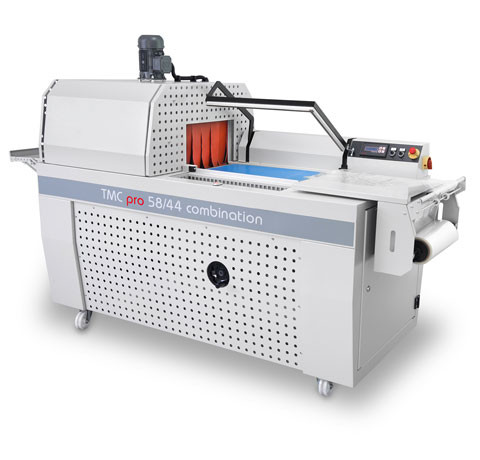

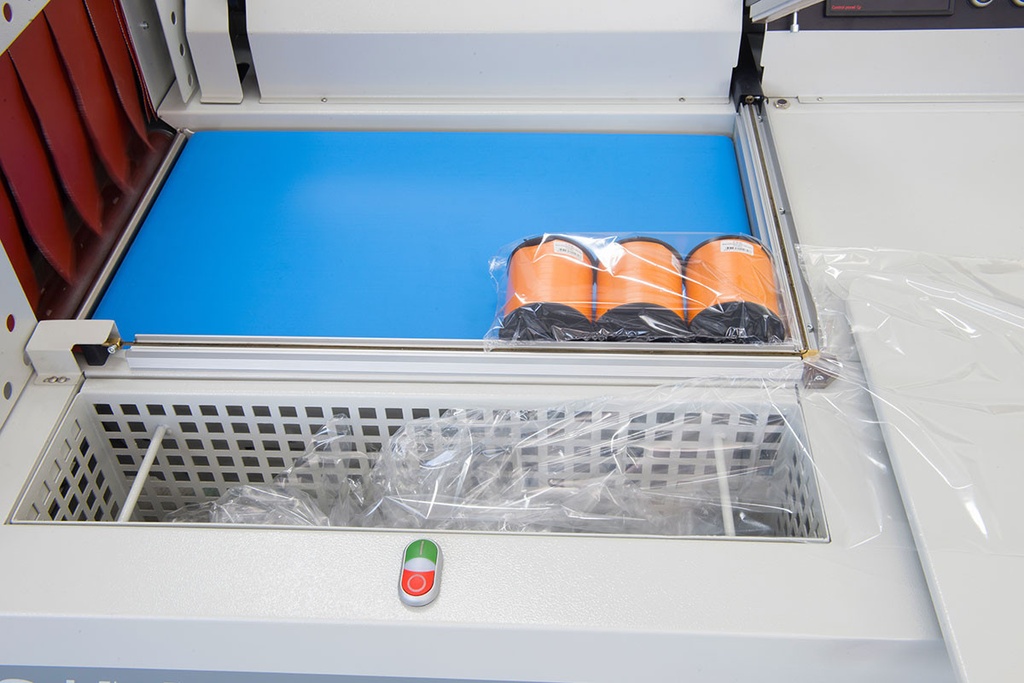

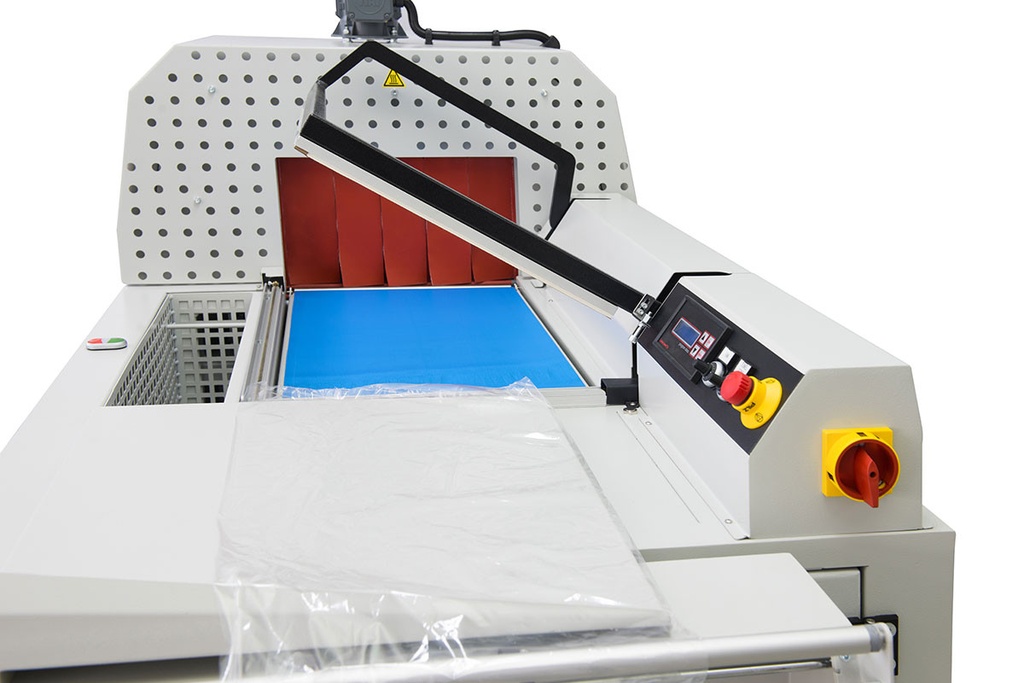

TMC 58 X 44-M PACKING MACHINE

Advantages:

• Minimized layout requirement by compact single-chassis design
• Easy to use, compatible with health and safety standards
• Ability to provide heat to wire at exact efficient dose, realized by I-Sealing System®
• Ability to keep wire temperature constant, realized by I-Sealing System®
• Increase in sealing quality, process accuracy and life-span by stabilized heat control

Features:

• M Series: Sealing L-Bar is driven by a motor (no need for compressed air)
• M Series: In automatic mode, sealing bar cycles automatically in predefined period
• M Series: In free mode, sealing bar is triggered by button
• M Series: Sensor detects any obstacle and stops the cycle automatically for safety
• H Series: Sealing L-Bar is closed by hand, weight is balanced with reverse load
• H Series: Magnetic holder keeps L-Bar closed for pre-defined time period

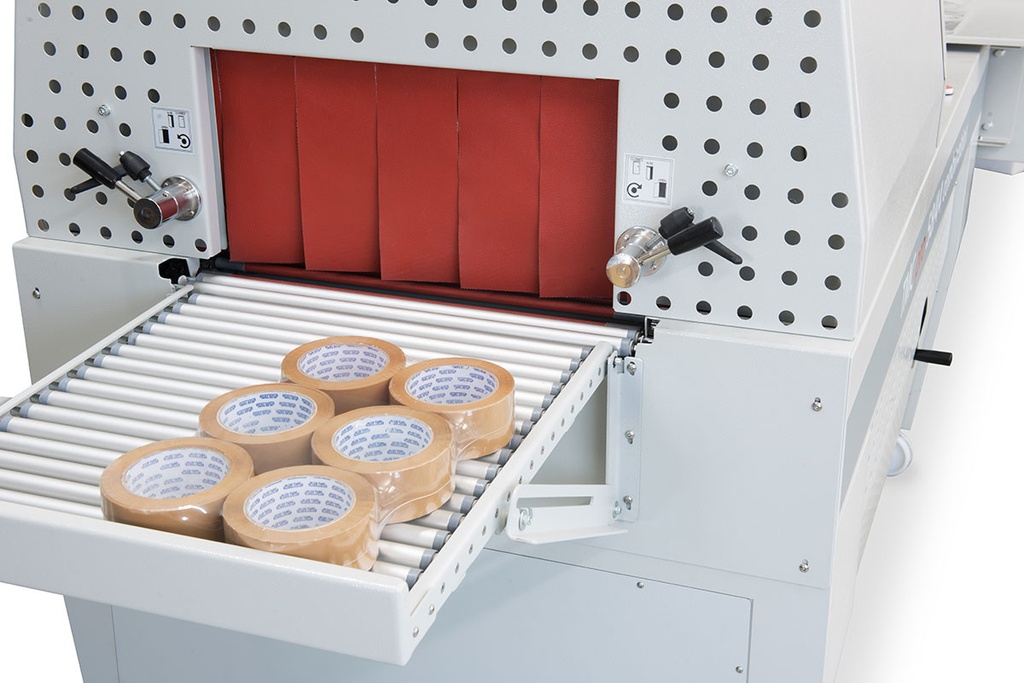

• Adjustable speed of tunnel conveyor for optimized heat application period
• Heat adjustment with digital PID control
• Air circulation control by side flap handles
• Automatic post cooling system for cooling down to 70ºC before switch off
• Additional emergency temperature control system against fire risk
• Easily transportable on wheels inside a facility

Sealing:

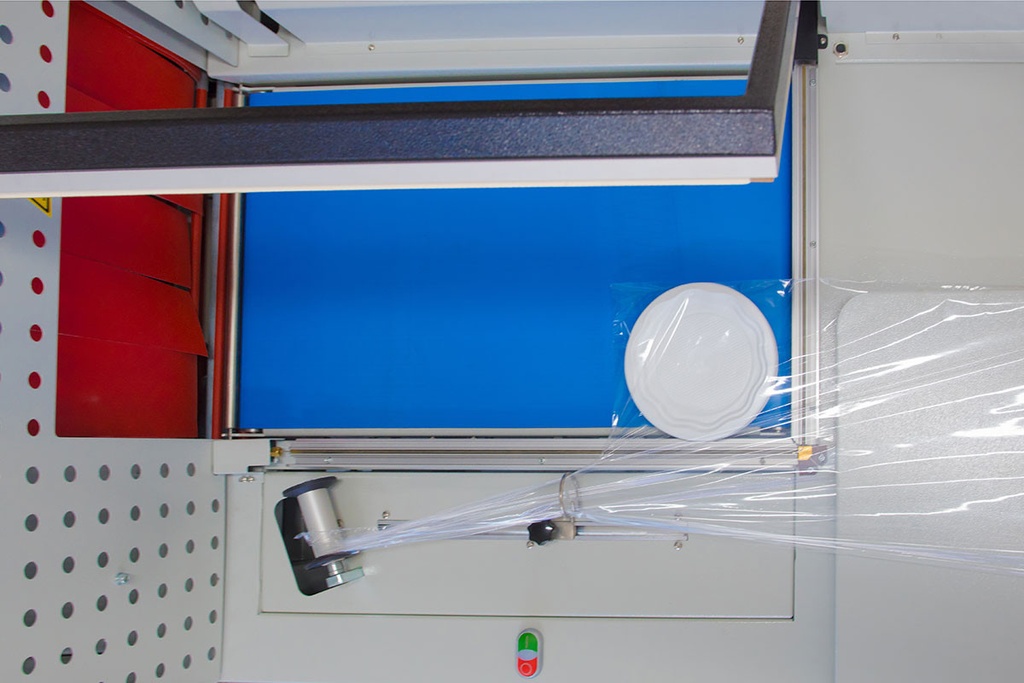

• M Series: Sealing is actuated by motor in between wire and silicon rubber
• H Series: Sealing is actuated manually in between wire and silicon rubber

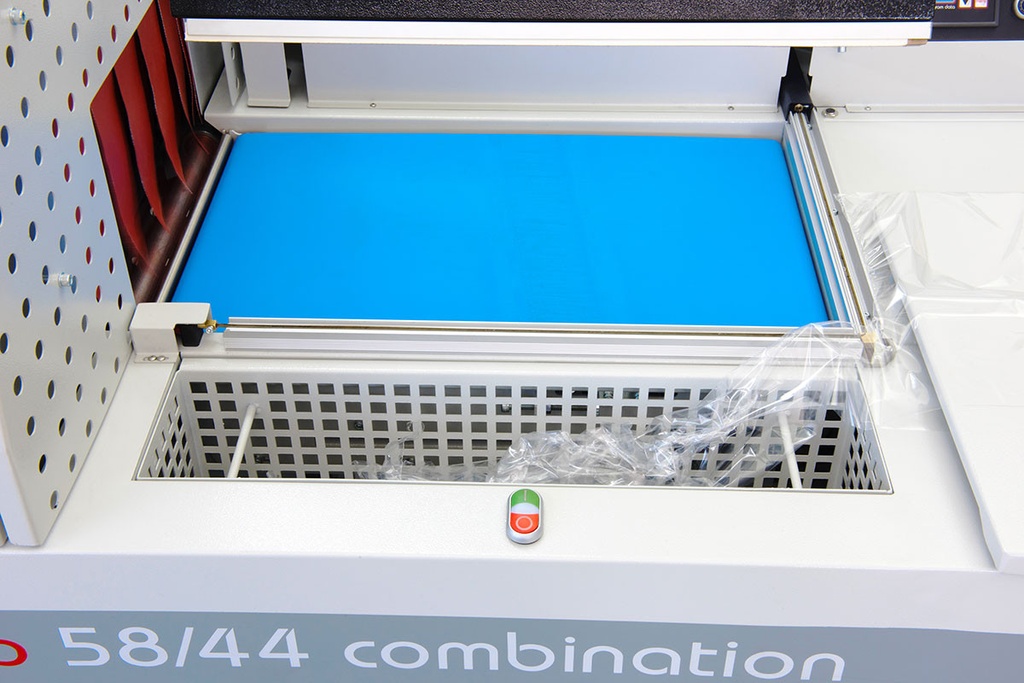

• Sealing wire is positioned on fixed bottom frame for safety
• Sealing wire is embedded into heat-resistant fiber profile
• Non-stick coating belt covered silicon rubber increase sealing quality and life-span of silicon

Flexibility:

• Height of conveyor line can be adjusted with respect to varying product height
• Working time of conveyor can be adjusted with respect to varying product length
• Power of sealing wire can be adjusted with respect to varying film thicknesses

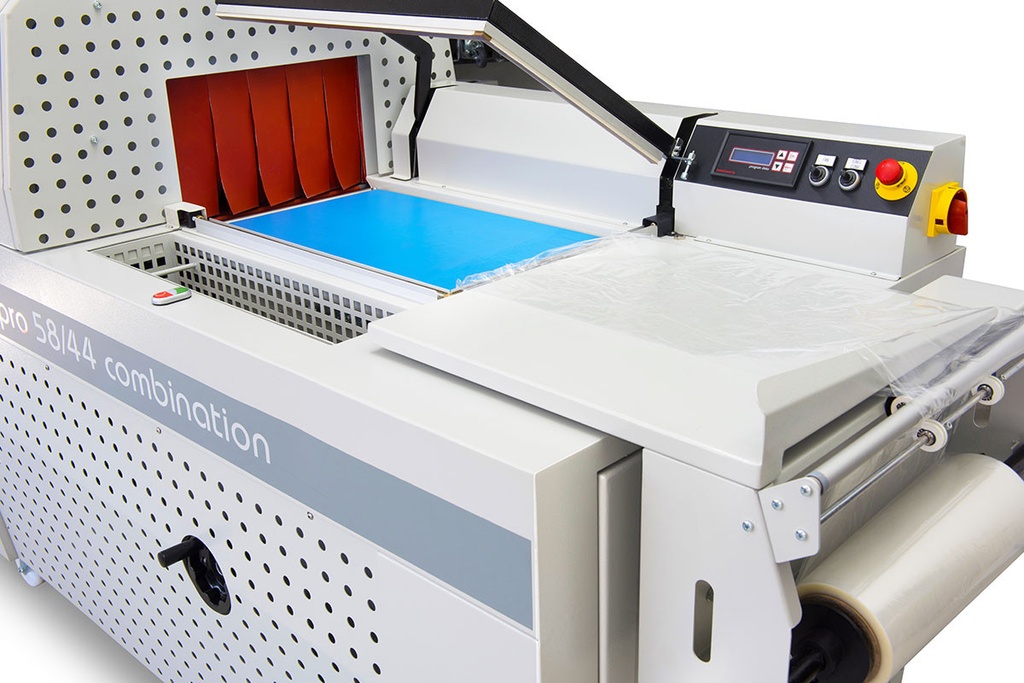

• Heat, time and speed parameters can be easily adjusted via digital control panel
• Various language options are available in digital control panel

Optional:

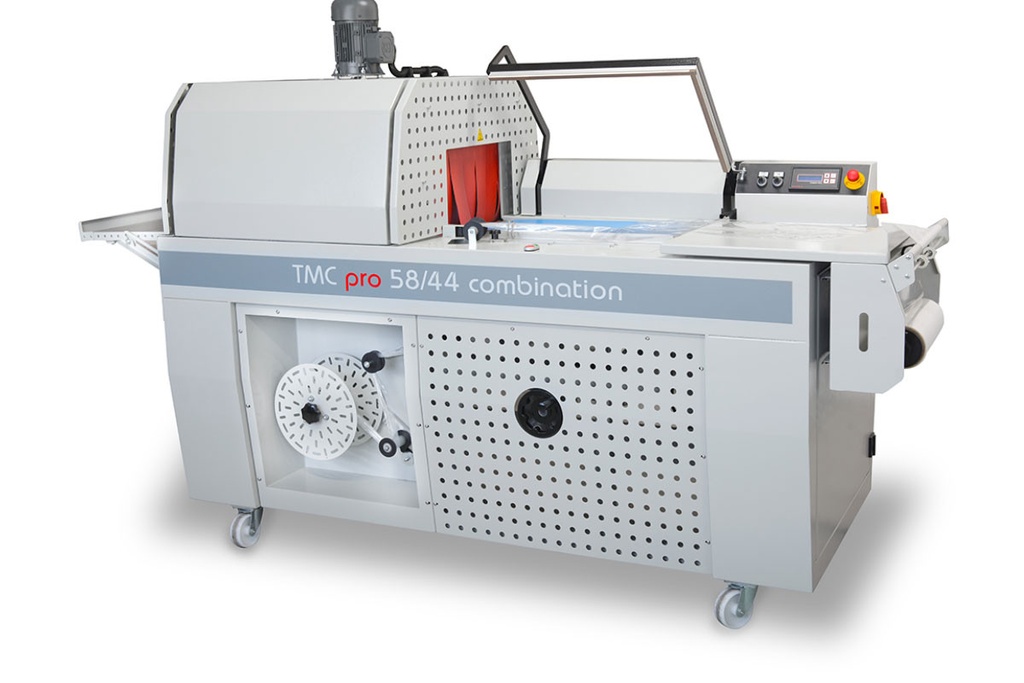

• Automatic trim winder option is available upon request
• Stainless steel versions are available for wet/moist working environment
• Speed inverter for air circulation fan of heat tunnel

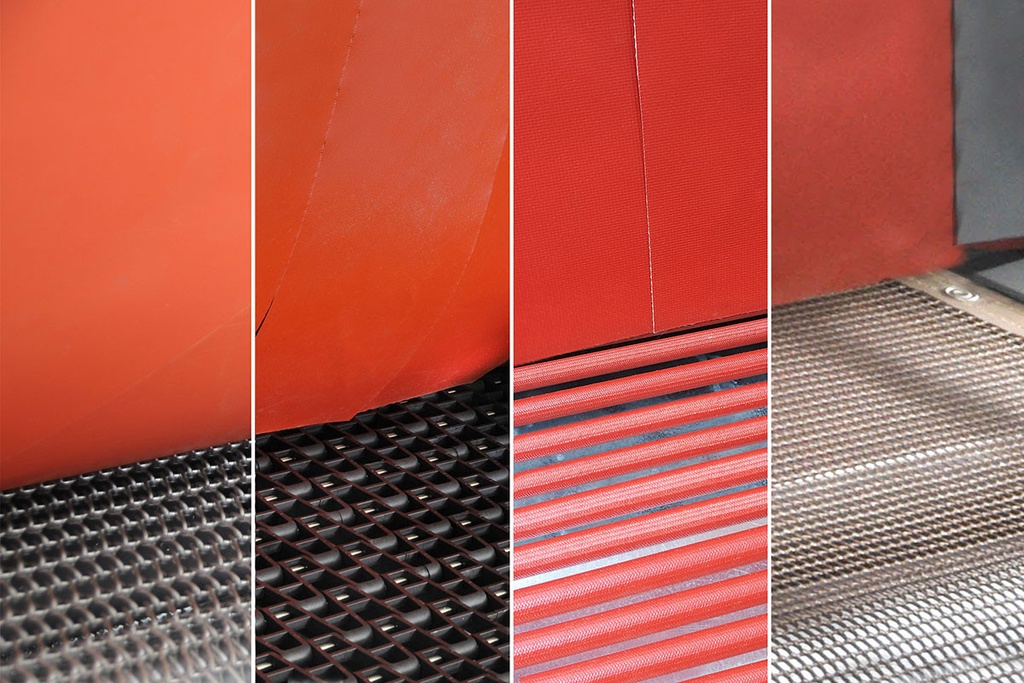

• Tunnel conveyor alternatives: Wire Mesh, Non-Stick Coating Mesh or Plastic Mesh
• On-site installation and training service options are available

Quality:

• ISO9001 quality standards with the relevant norm’s confirmation
• CE certifications, complies with the latest CE directives
• World-wide approved brands for all mechanical and electrical components
• 1 year warranty against manufacturing faults
• Wearable parts are not included in warranty terms
• 1 set of wear parts is provided along with the machine
• 5 years spare part stock availability is provided
• Installation, testing and training services are provided free of charge
